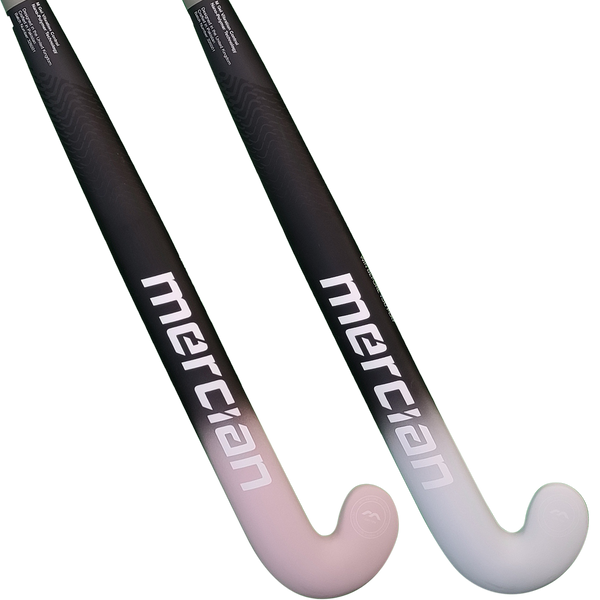

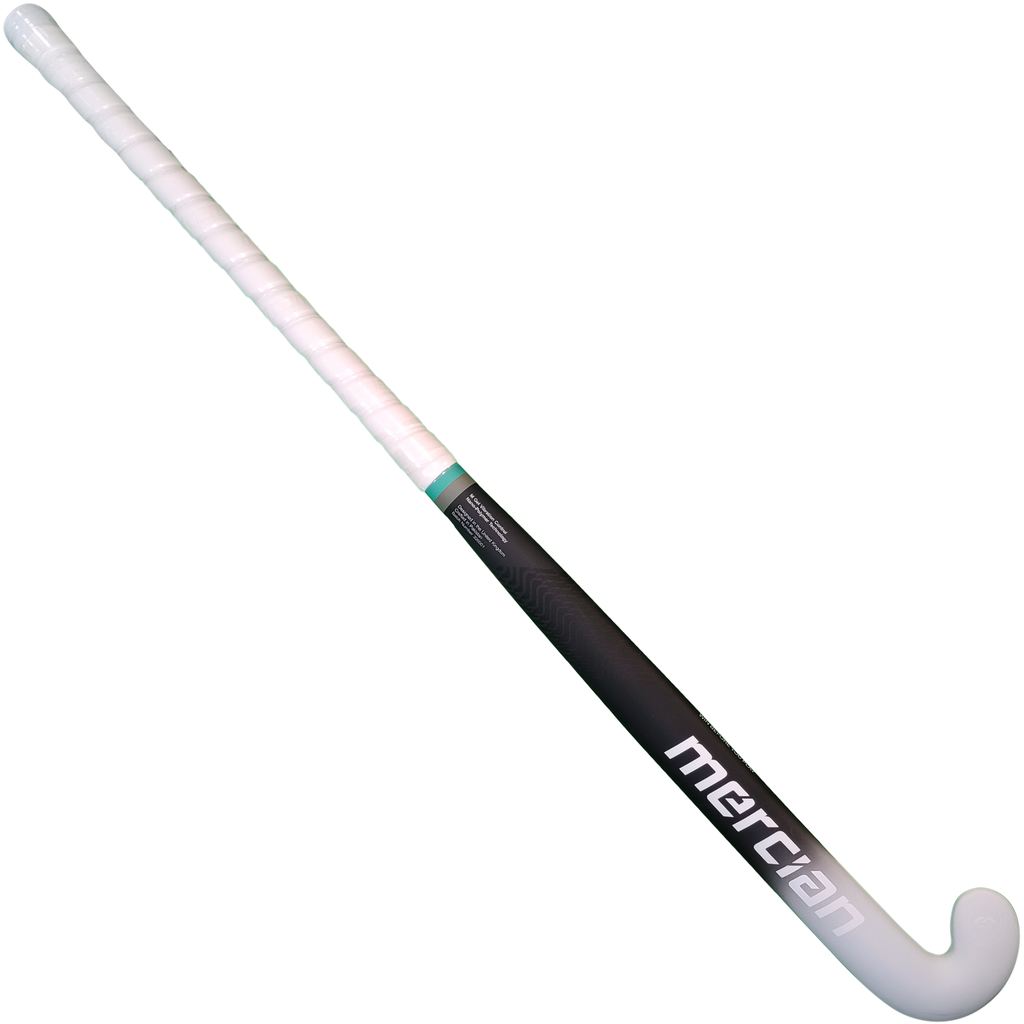

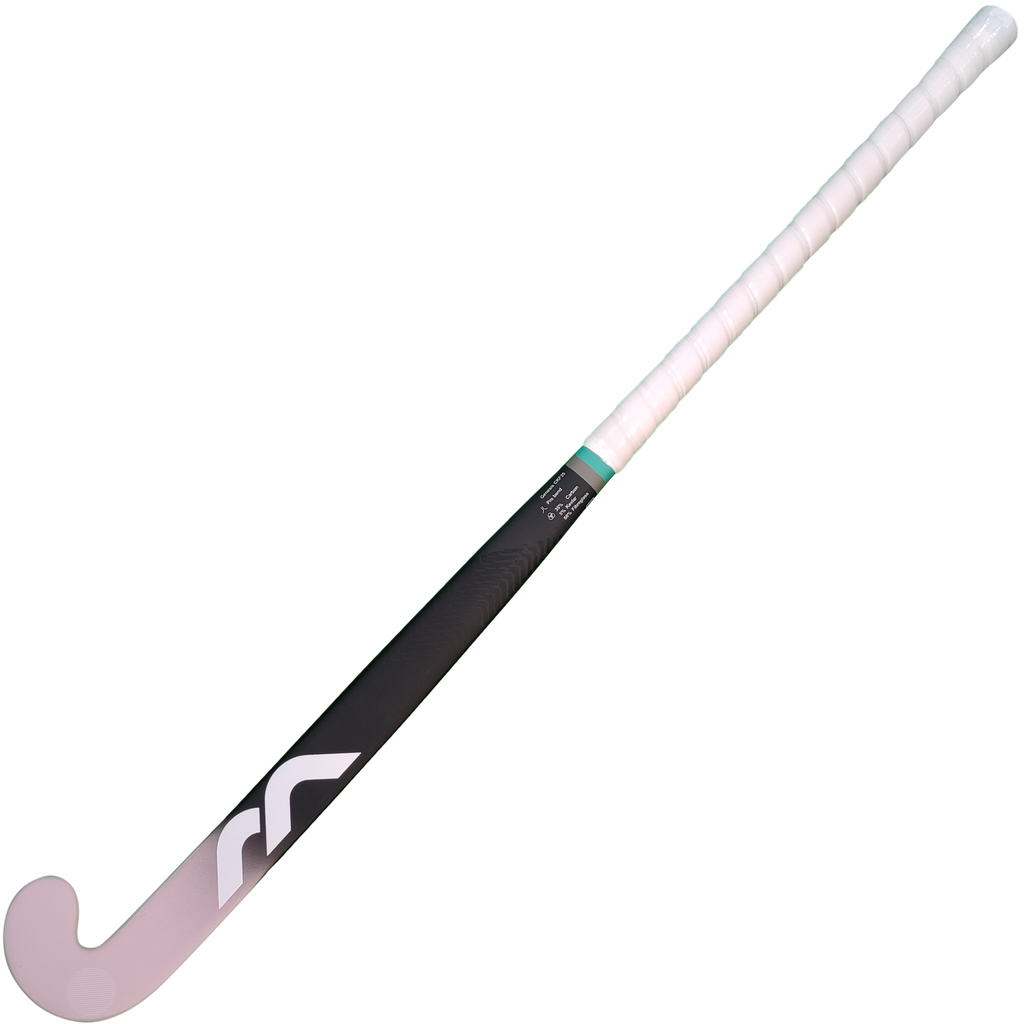

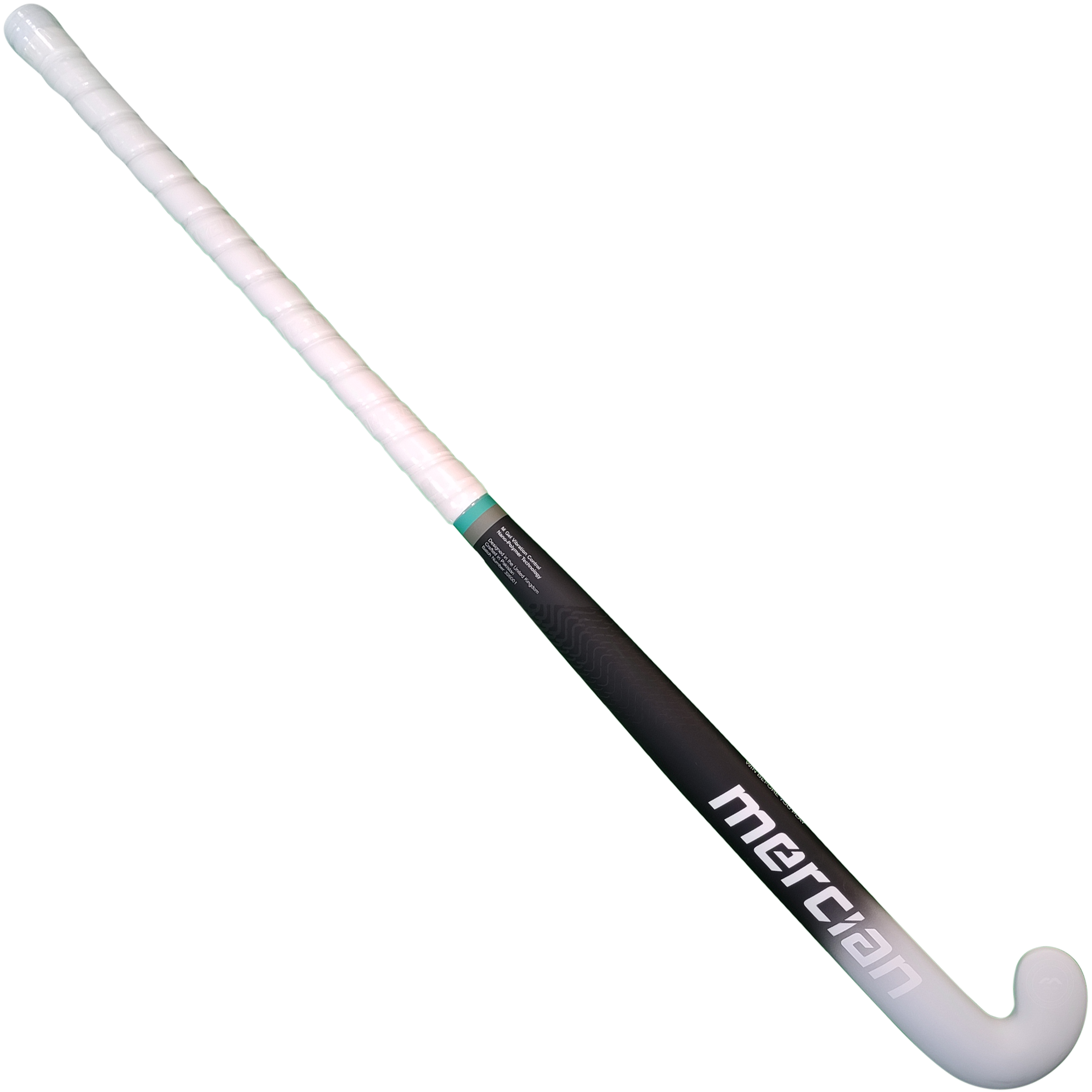

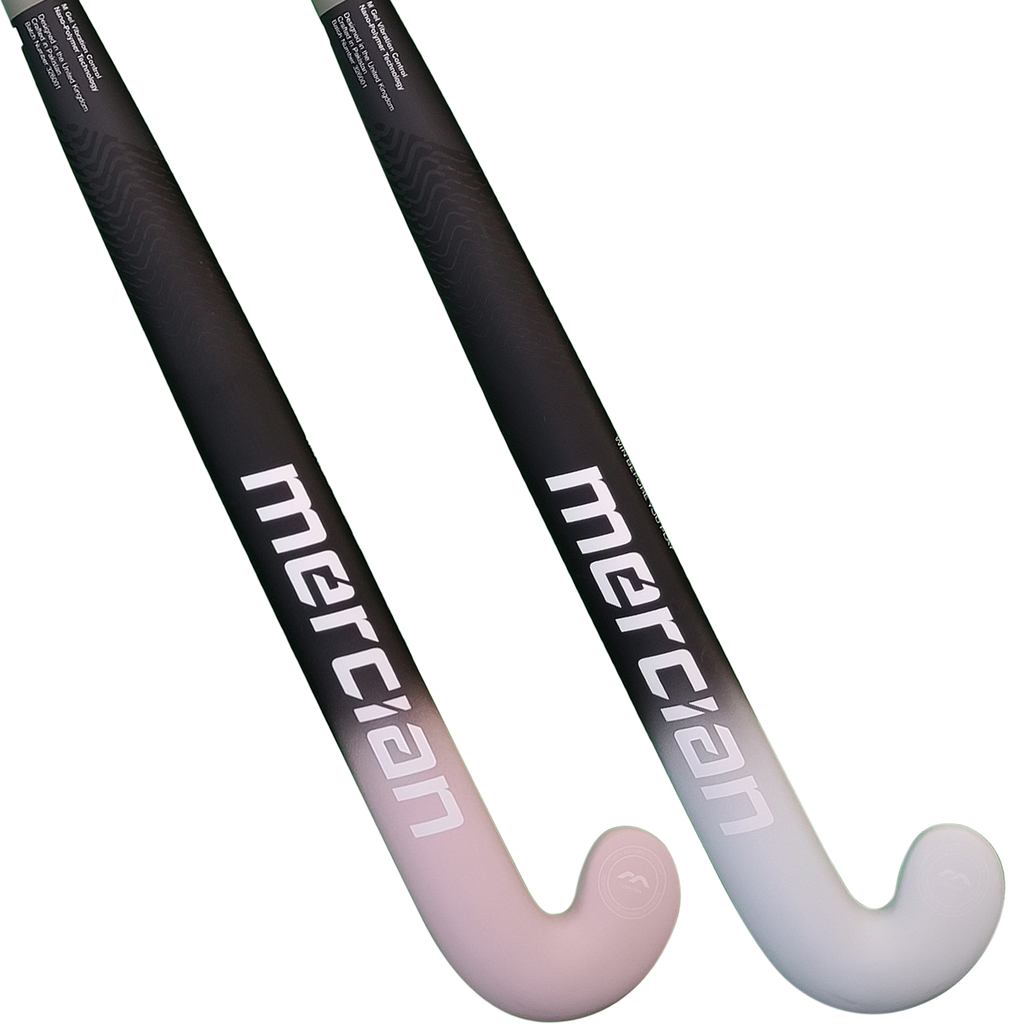

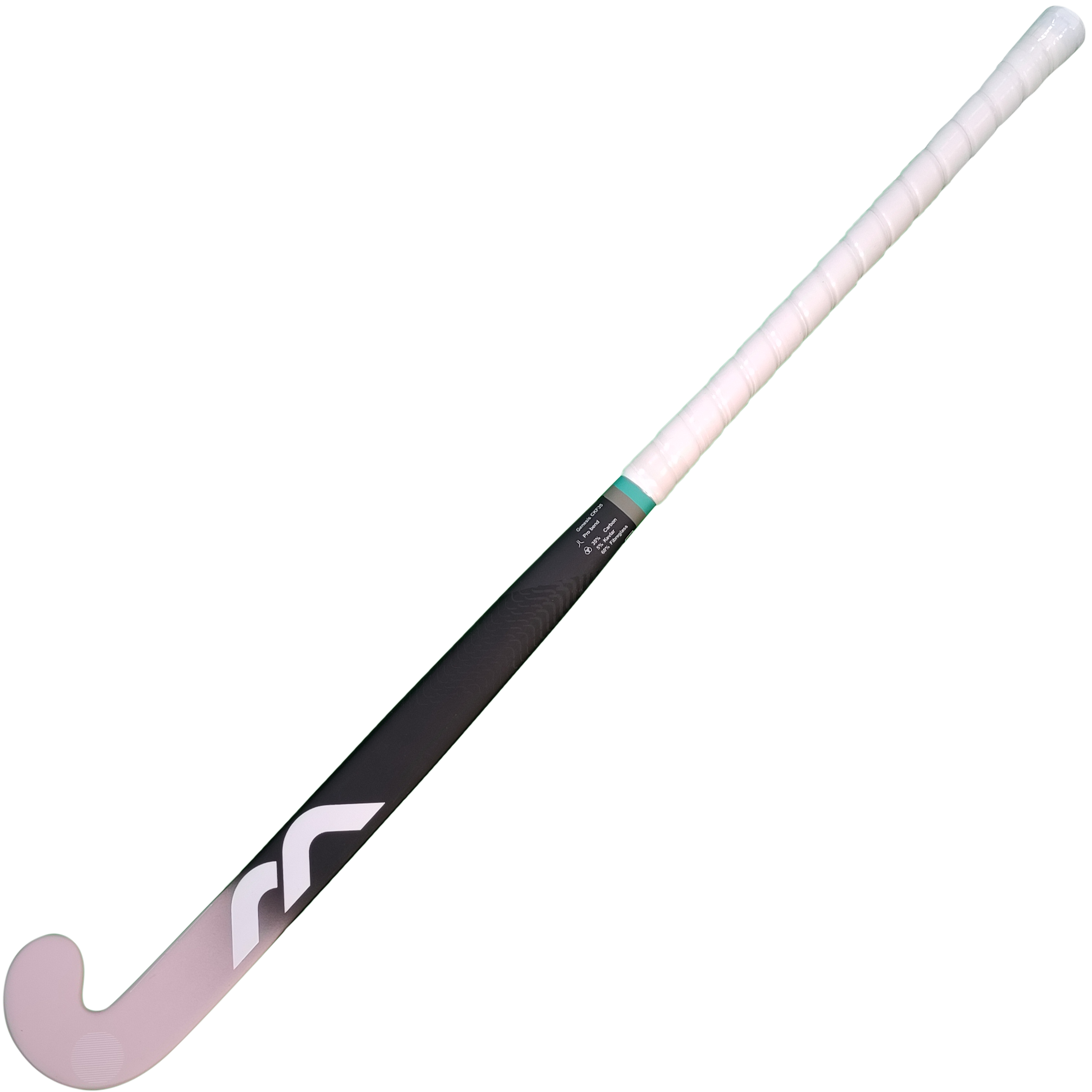

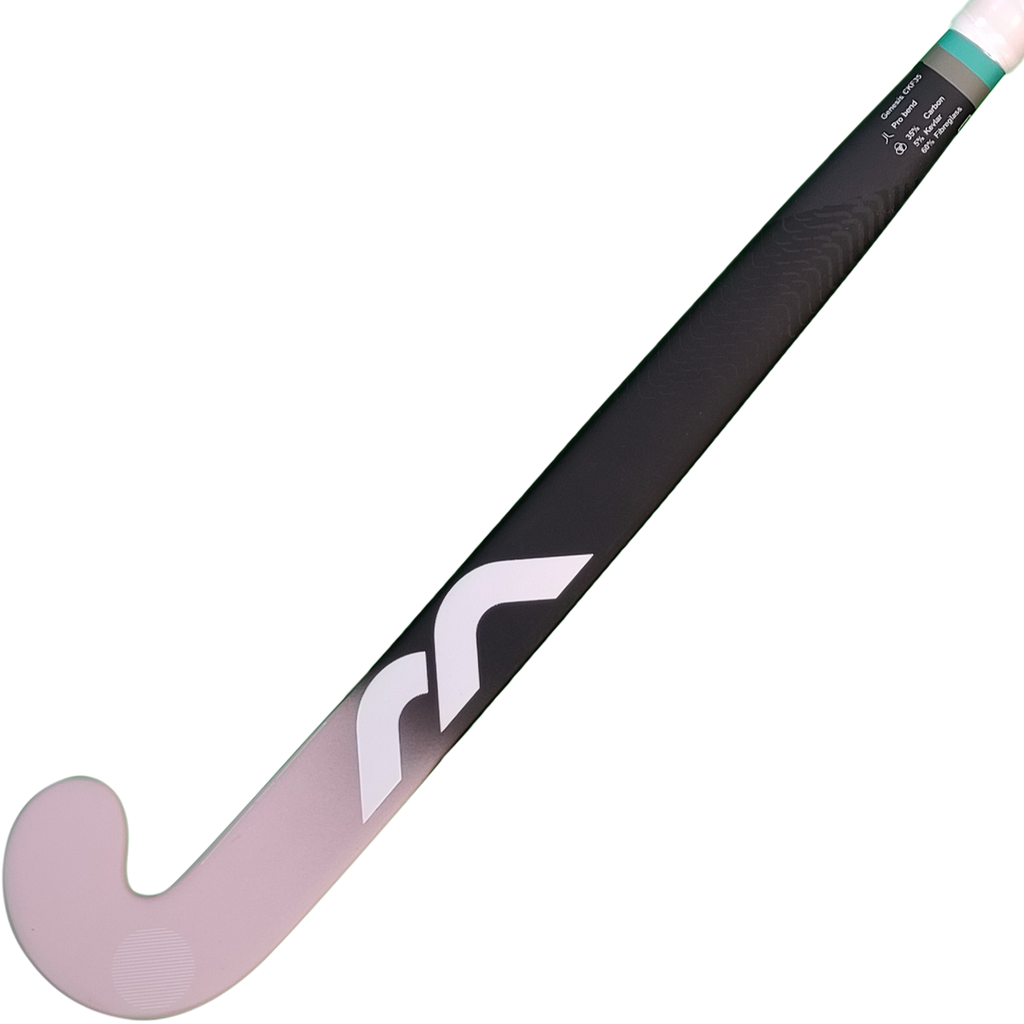

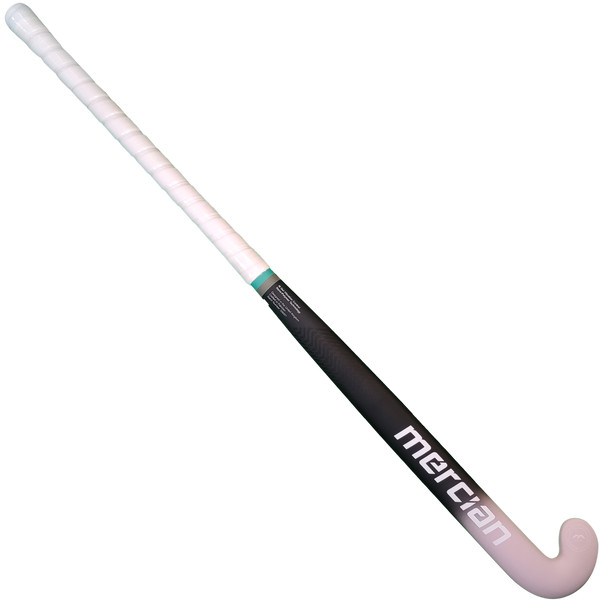

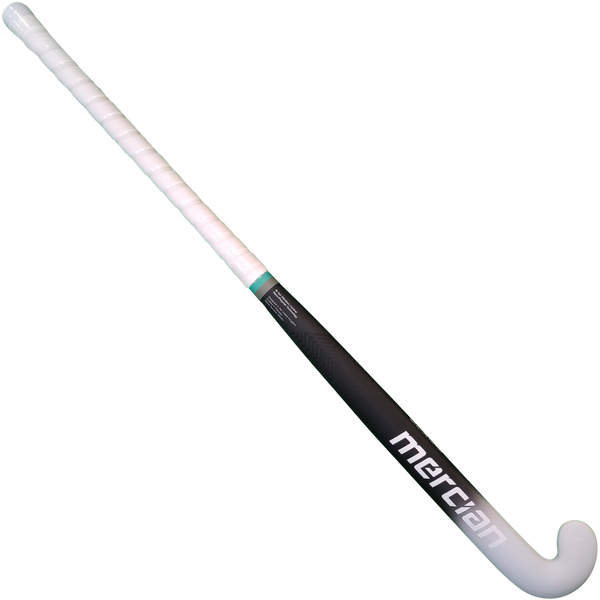

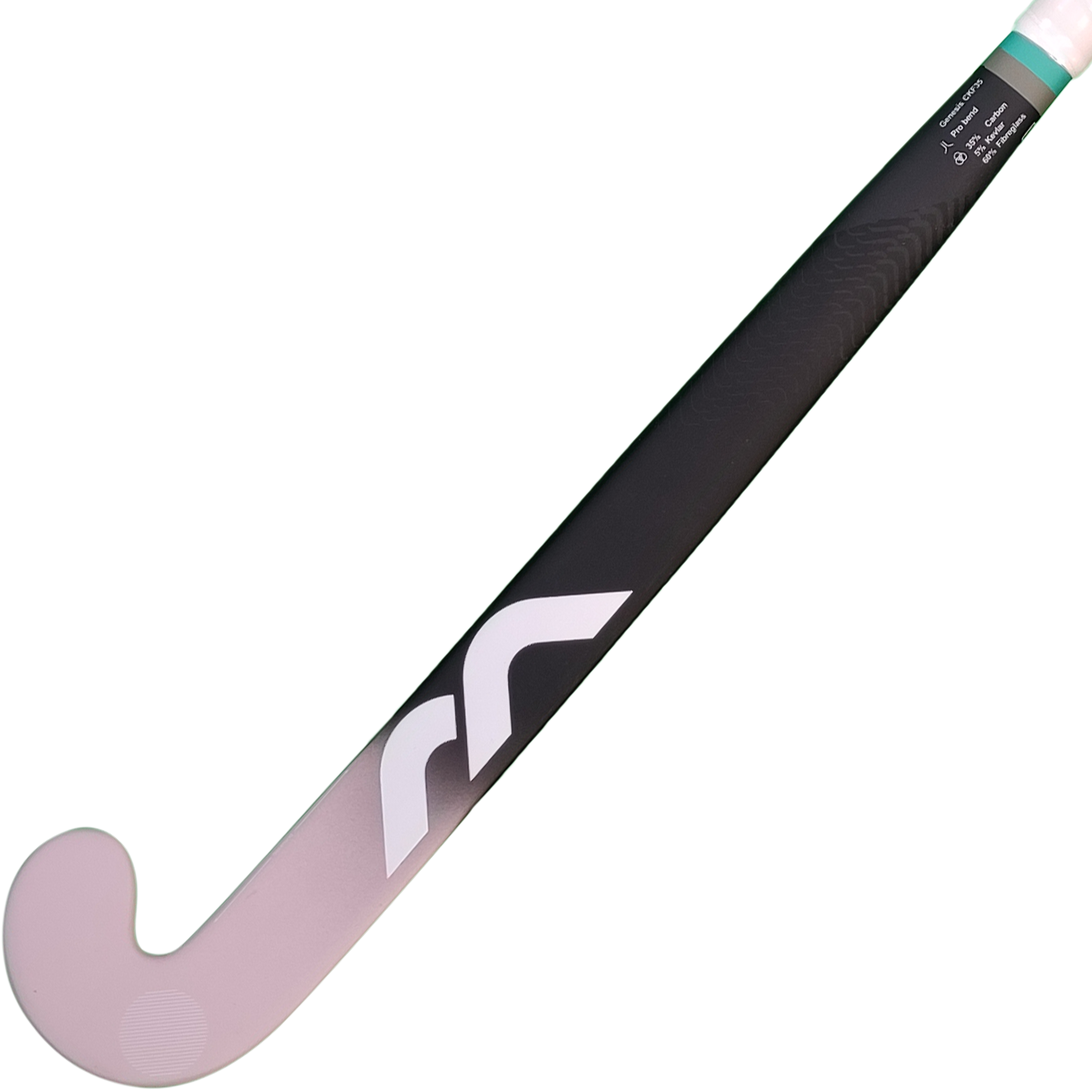

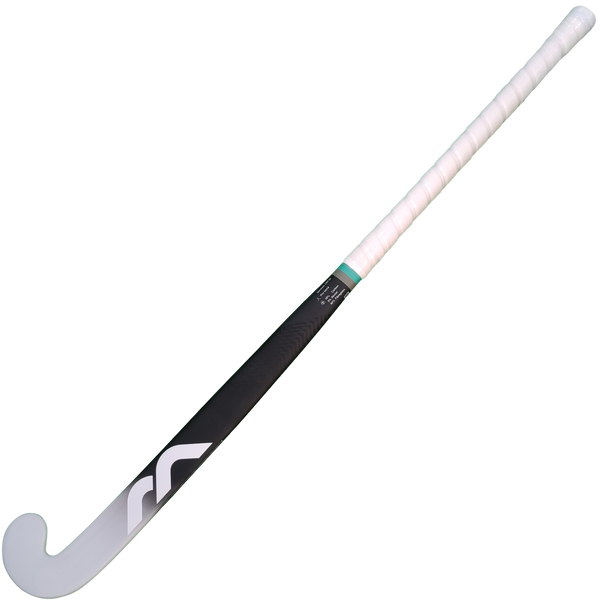

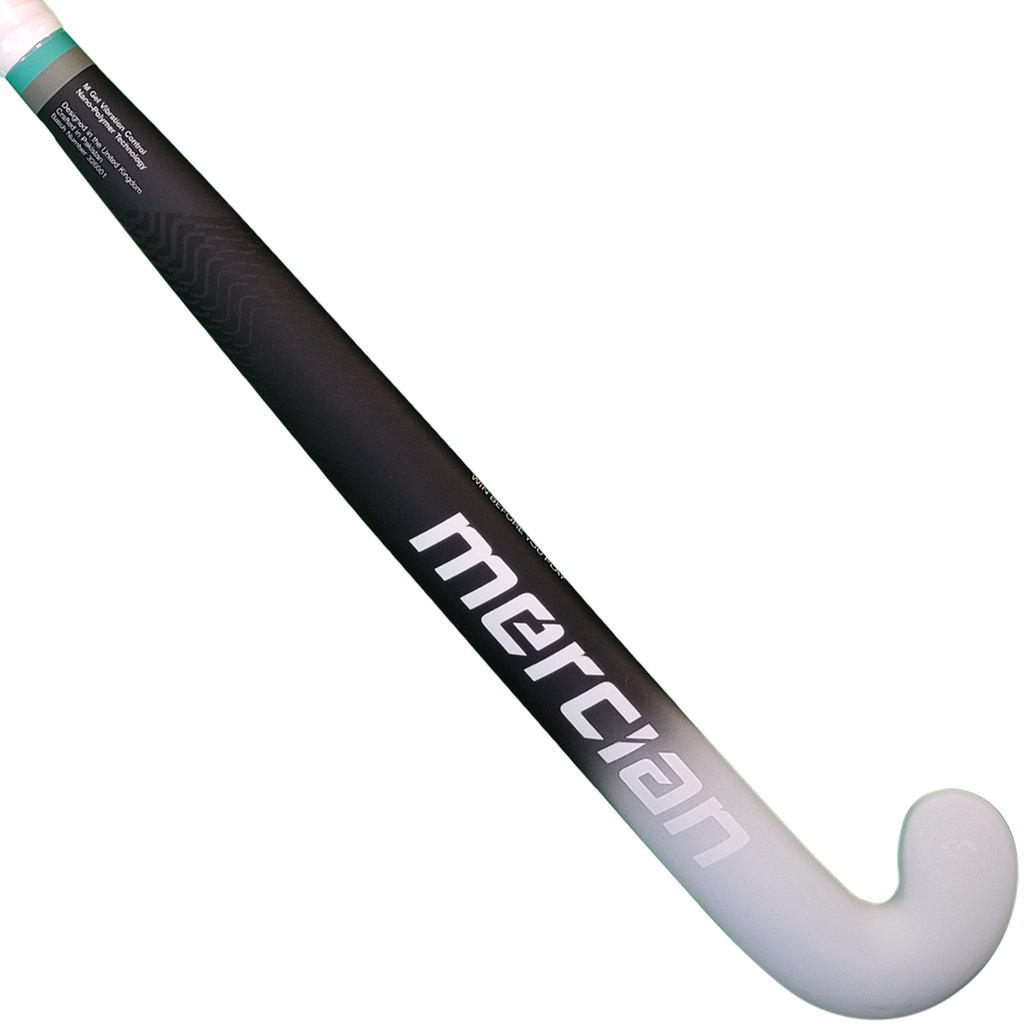

Genesis CKF35 (2023)
- Technical Details
- Player Profile

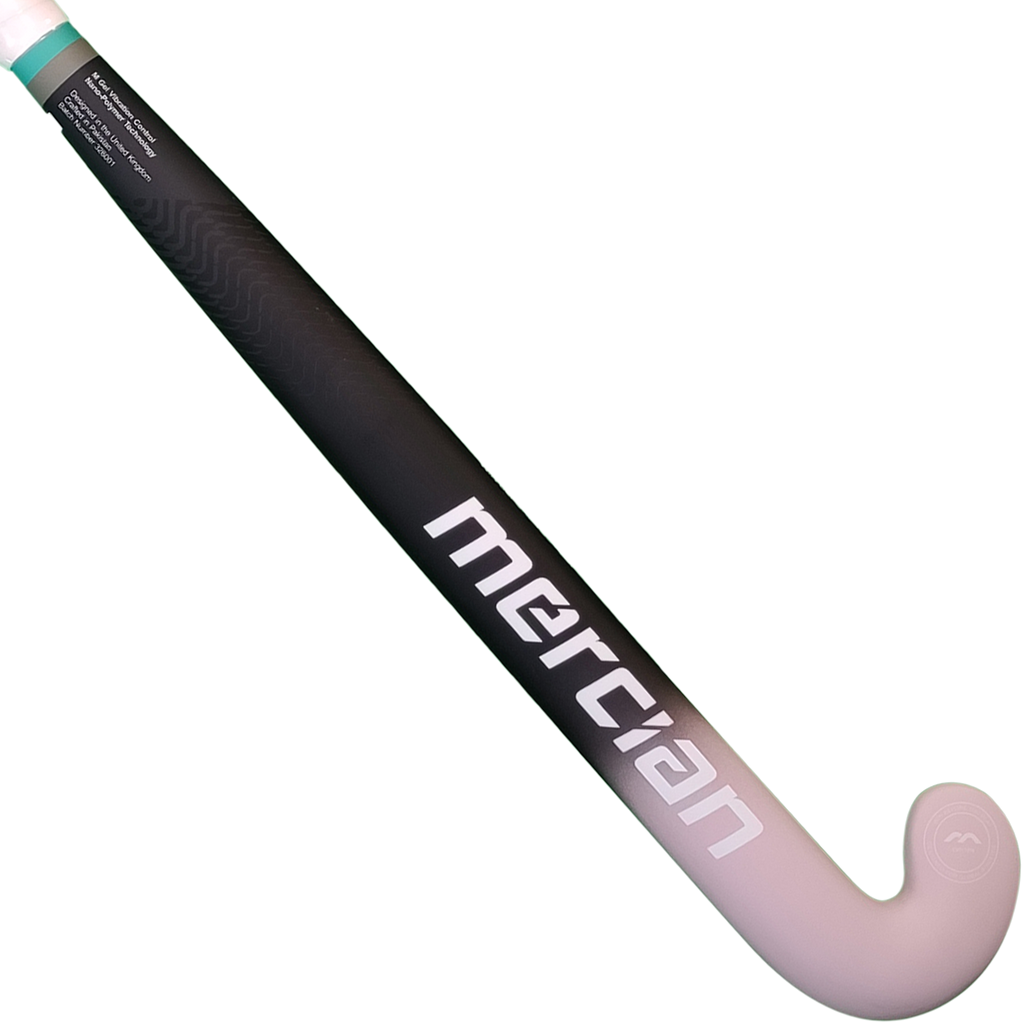

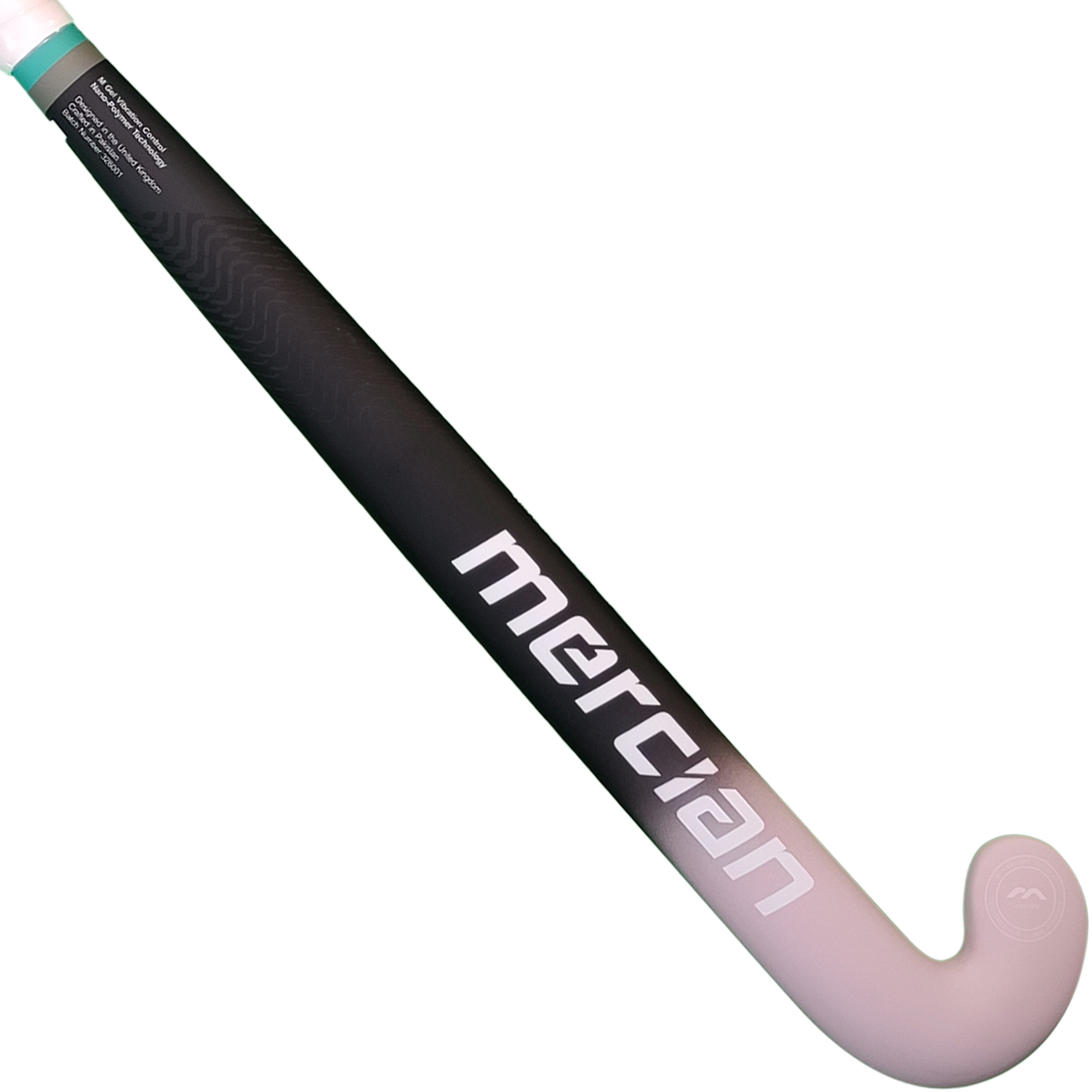

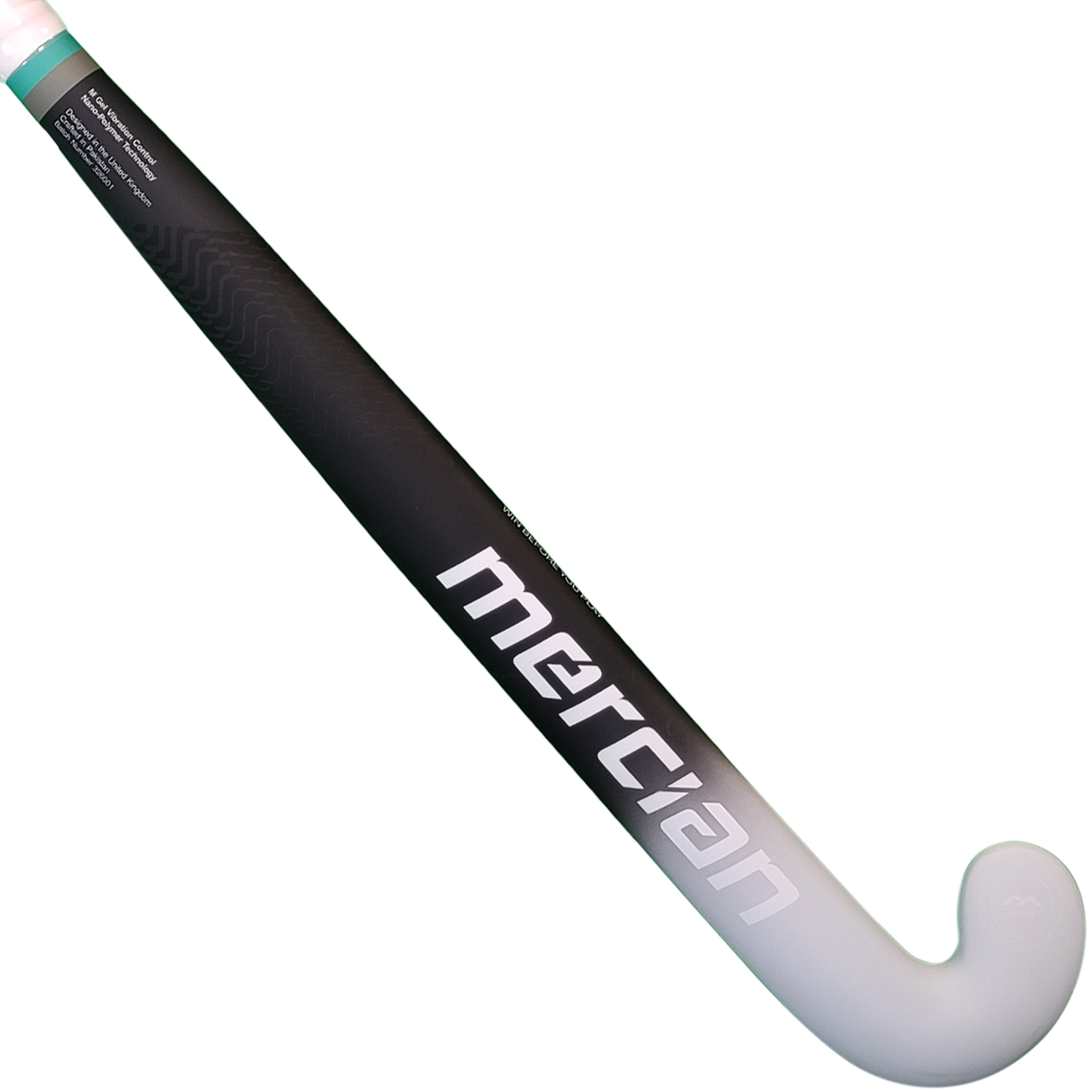

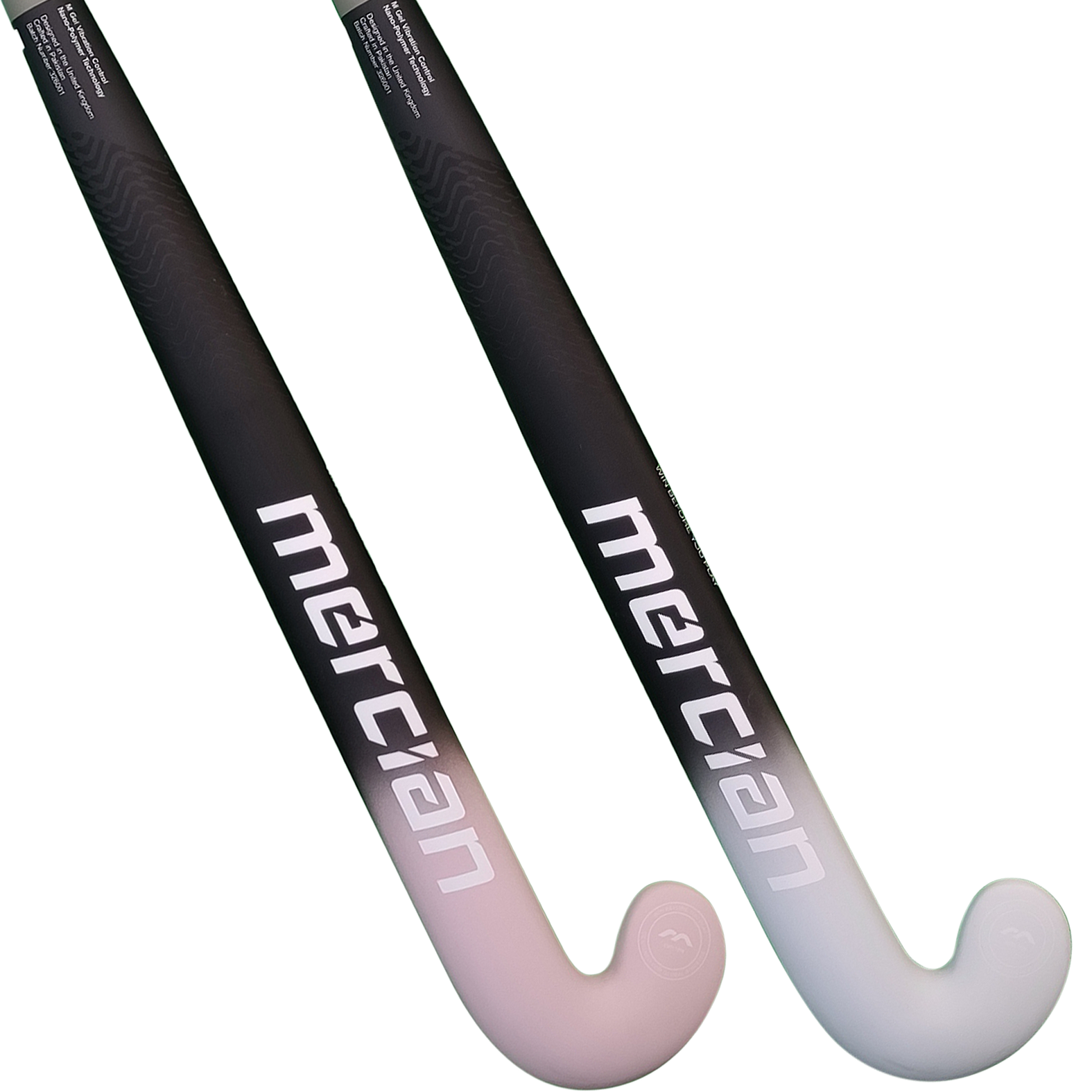

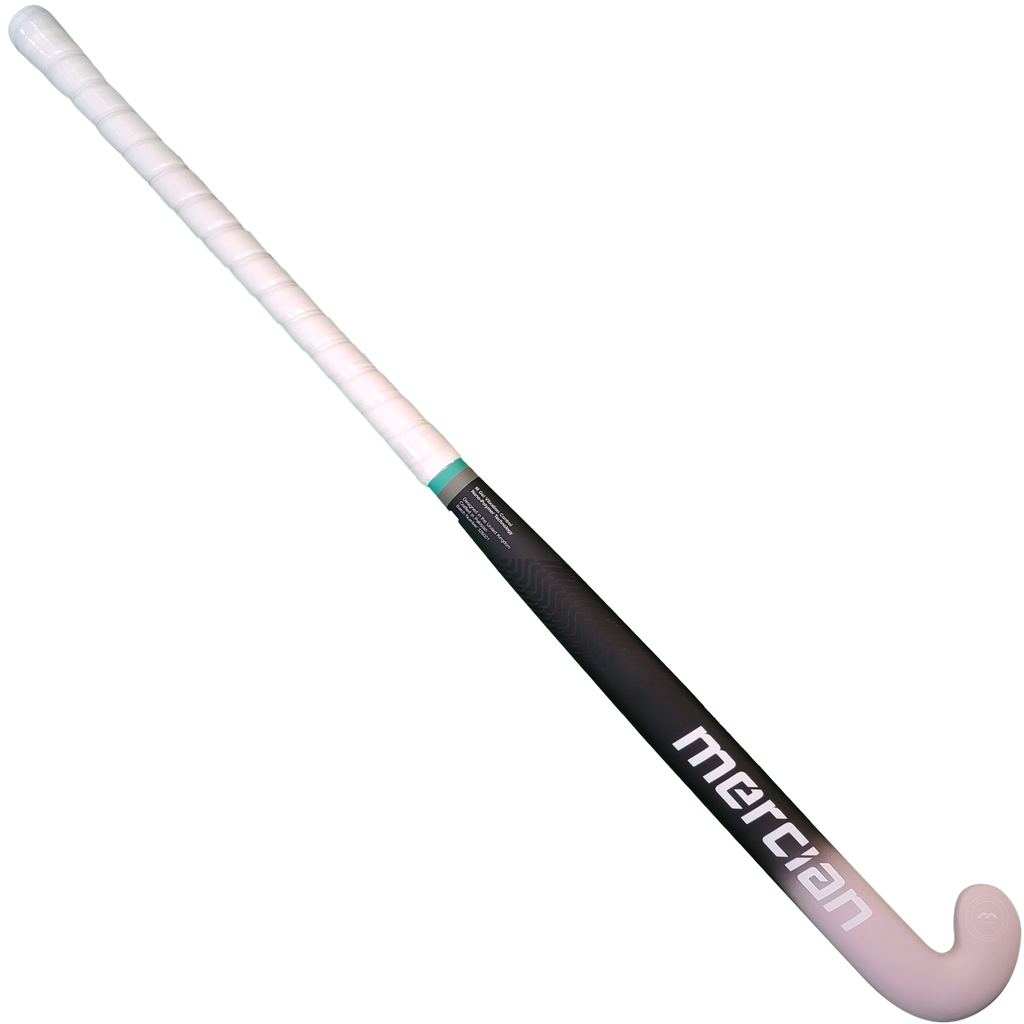

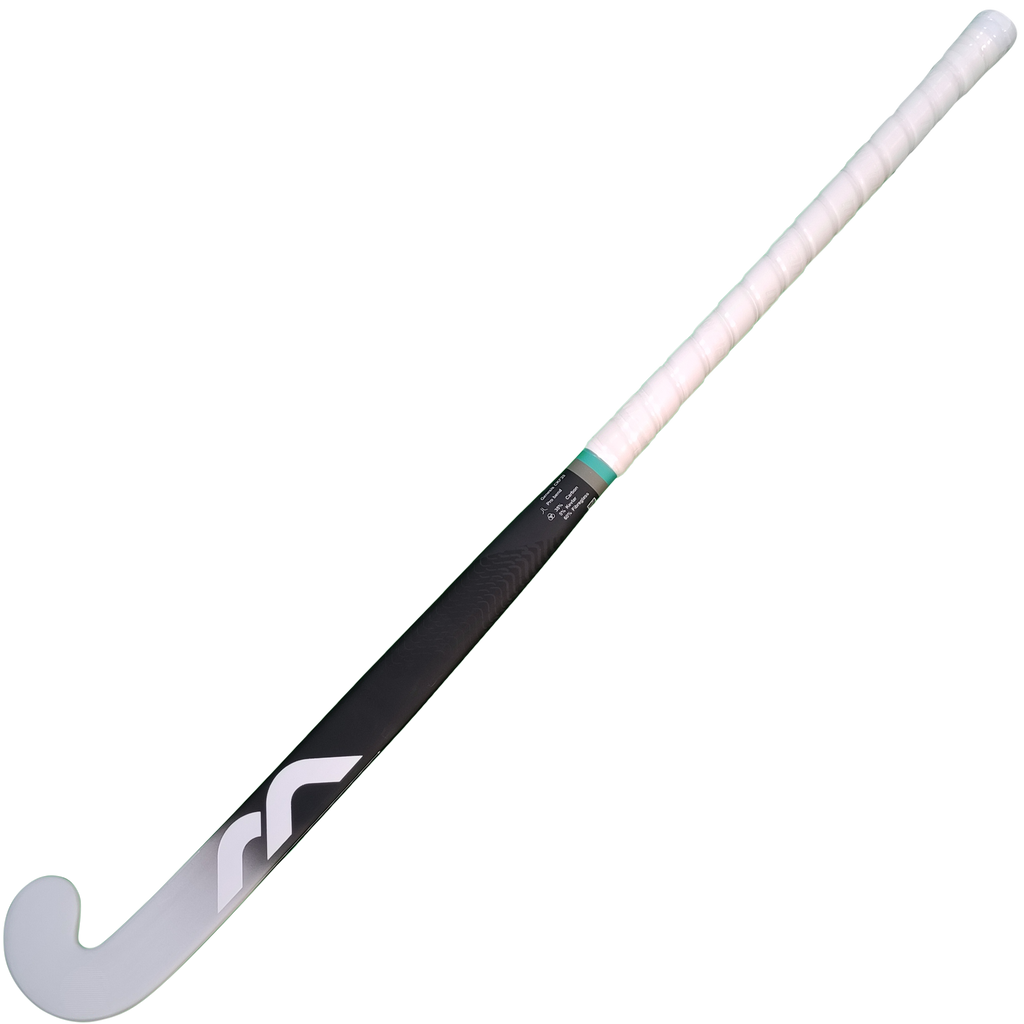

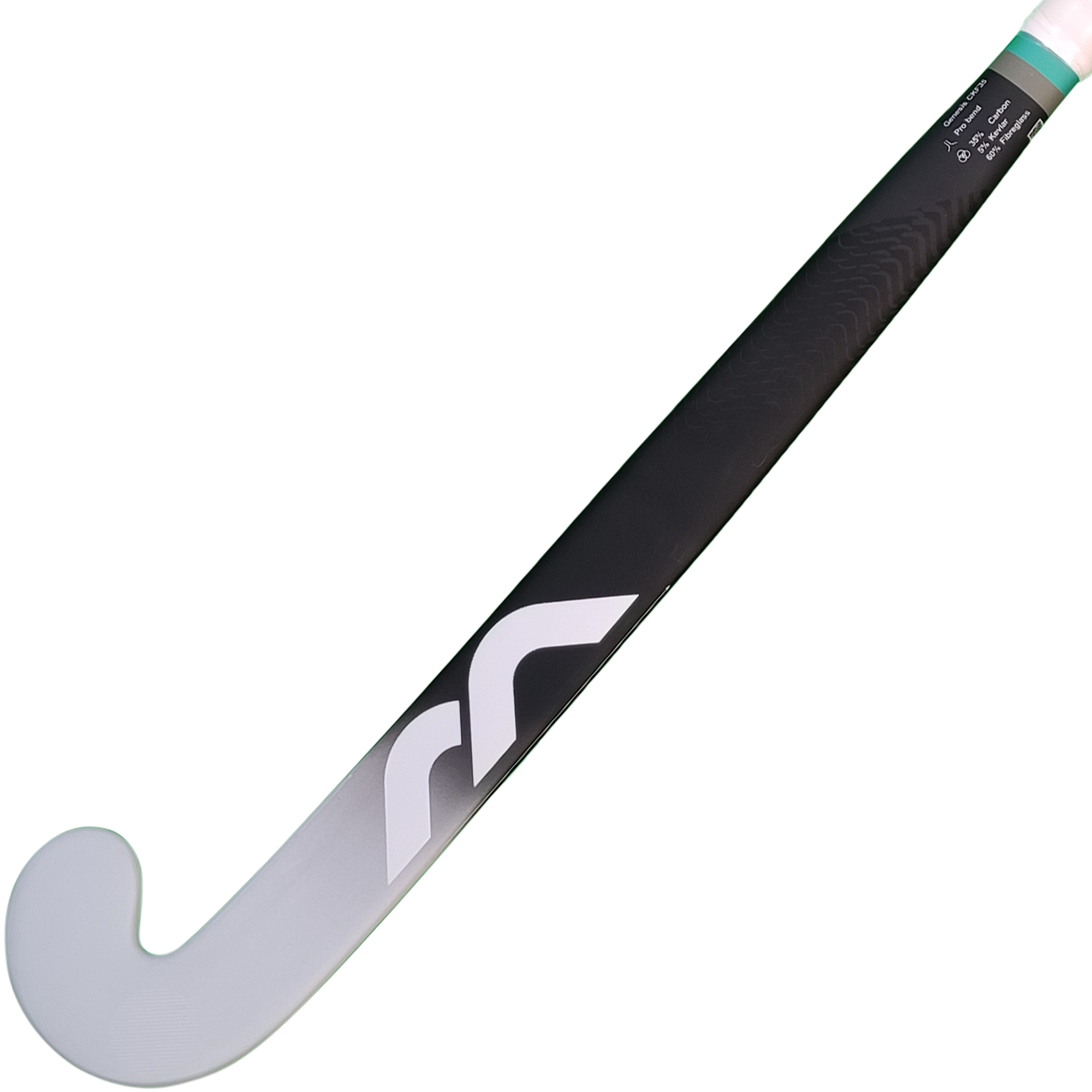

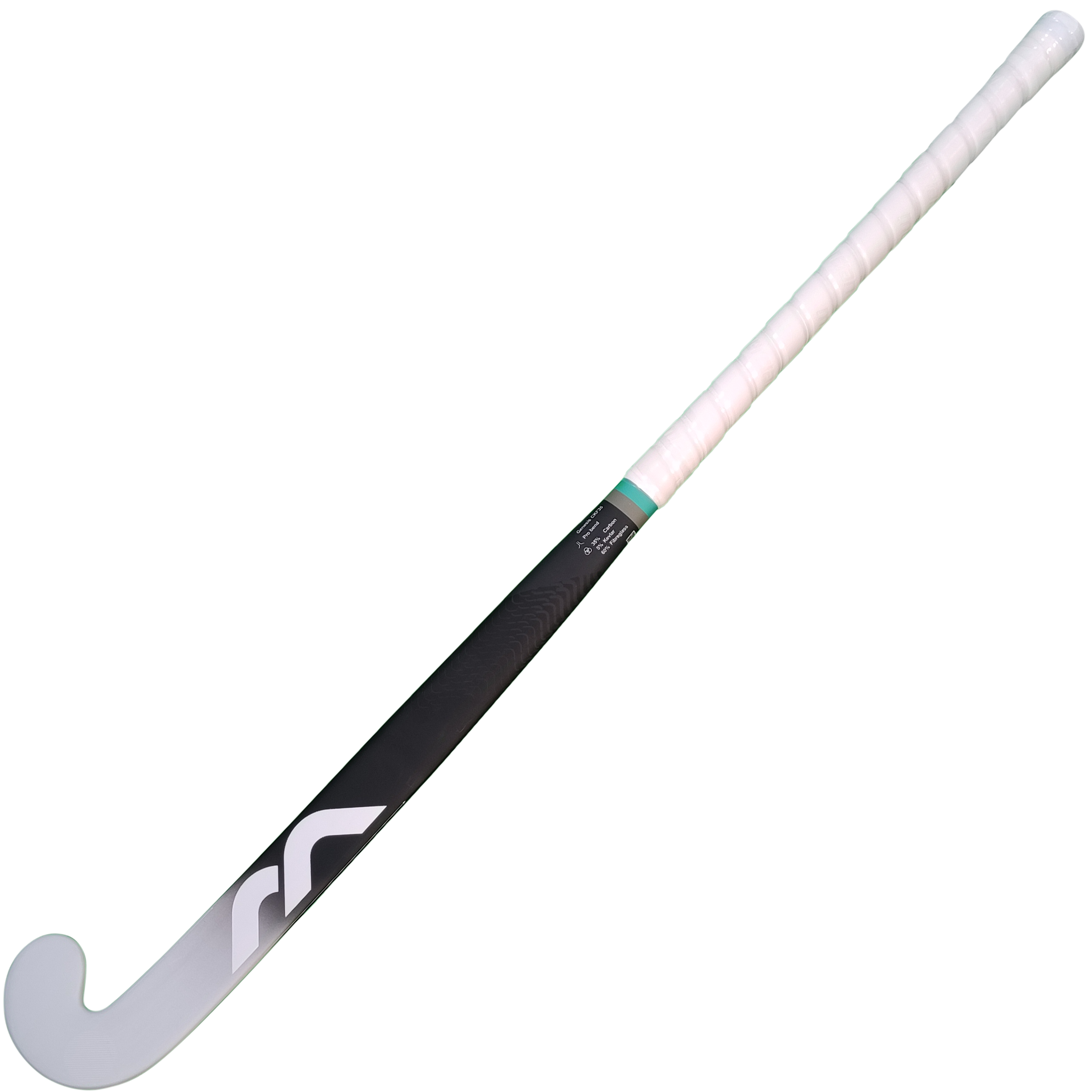

The Genesis CKF35 is a 35% Carbon Pro-bend composite hockey stick. At the top of the junior collection (*also available in senior lengths), the Genesis CKF35 offers a good level of carbon within the construction to aid energy transfer from player to ball and therefore assisting with hitting power. The Pro Bend (24mm @ 230mm) and full midi head ensure that a players skill execution is supported with an adult shaft shape but without the aggressive low bend.
- 35% Carbon
- Pro (low) bend (24mm @ 230mm)
- M-Gel vibration control
- Nano-Polymer Resin
- Kevlar (Aramid) durability
- Fibreglass Micro-skeleton and laminates
The Mercian Pro Bend incorporates a near maximum 23.5mm bow positioned just below the mid-point of the shaft, approximately 250mm from the bottom of the stick. The shaft has then been shaped to give a thinner proﬁle under the right hand and a balance point that favours the head end of the stick. This gives a combination of great stick turn-over due to the shape but enhanced hitting power because of the balance point and sweet spot, the hitting power is also enhanced because the head is 1.5mm thicker than the ultimate bend.
CARBON FIBRE – CKF35 – 35% Carbon
One of the most common questions asked by the consumer is ‘how much carbon?’ with the perception that more is better. That is far from the truth, so to shed a little light. Firstly, the quality of carbon (manufacturing point) is important. Toray (Japanese) Carbon is often considered the best, but Carbon from Germany, Scotland and South Africa (to name a few) are all high-quality. Sticks are usually made in Pakistan and most major brands will import Carbon into Pakistan to make sticks. Local made carbon is not usually as good. But it is difficult to know if a brand uses imported carbon. The number of filaments in the carbon fibre is relevant, 1K, 3K etc relate to the number of filaments of pure carbon within a fibre or ‘tow’. 1K is used in aeronautical industry and electronics. 3K and 6K are commonly used in sport as they have the right combination of weight and strength. Anything over 6K is very dense and too heavy for sports equipment. Again, this isn’t a common line of questioning from the consumer but may come up. Carbon fibres are a straight-line material and so provide stiffness in a single direction. To provide stiffness in multiple directions the fibre can be woven into a multi-directional sheet (seen as an obvious weave in the sticks surface) or single direction sheets can be layered over each other to create the multi-directional stiffness. 40% of the weight of a composite stick comes from the resin within it. So a stick can’t be 100% carbon. However, it can be claimed that 100% of the composite materials in a stick are carbon. Mercian do not believe this gives optimal strength and so always combine the carbon overlay with a composite micro-skeleton made from fibreglass, Kevlar (aramid) and basalt. Carbon is stiff but brittle. The stiffness means that the energy created by the player when striking the ball – hit / slap – transfers to the ball and is not absorbed by the stick. Maximum energy transfer allowed by the FIH is 98%. But this stiffness means that the stick will not absorb energy on trapping / receiving so needs soft hands! The brittleness of carbon means that if the fibres are broken (stick tackle / post impact) they will crack and the stick can or will fail. This is not a manufacturing fault. Other materials can be used in conjunction with carbon to get a positive performance outcome. Special chemicals are used with paints and lacquers to get them to bend to the top layer of carbon and create high-quality graphics.
COLD SATIN LACQUER
The final coating applied to a stick is usually purely for cosmetic reasons. The Cold Satin Lacquer applied to the Evolution models actually feels different under a player's touch, increasing awareness of temperature and giving the impression of reduced friction for dribbling and stick turn-over.
TCDK (tungsten carbide diffused Kevlar) – CKF35 – 5%
Kevlar is the registered trademark for a para-aramid synthetic fibre, also known simply as ARAMID in other sticks. This high-strength material was first commercially used in the early 1970s as a replacement for steel in racing tires. Typically it is spun into ropes or fabric sheets that can be used as such or as an ingredient in composite material components. Currently, Kevlar has many applications, including bulletproof vests, because of its high tensile strength-to-weight ratio; by this measure it is 5 times stronger than steel. Tungsten carbide (chemical formula WC) is a chemical compound (specifically, a carbide) containing equal parts of tungsten and carbon atoms. In its most basic form, tungsten carbide is a fine grey powder, Tungsten carbide is approximately twice as strong as steel, For TCDK the fine powder version of WC is diffused through a sheet of Kevlar in the manufacturing process further enhancing the natural characteristics of the material and increasing both its strength and more specifically its durability.
The particles within our resins have been altered at a nano-size level (10 x below microscopic) Instead of using nano-carbon particles, the use of rubberized polymers creates a more flexible but stronger bond between the composite layers. This increases the stiffness of the sticks and reduces de-lamination.
FIBREGLASS – CKF35 – 60% FIBREGLASS
The basic synthetic material that makes the initial micro-skeleton in all Mercian composite sticks. Simple fibreglass stands, dipped in custom resins and then woven into sheets to be combined with other materials to create the combinations relative to the specific stick’s performance.
Creation of perfectly balanced sticks is based on experienced craftsmen, handling the highest quality raw materials and then balancing the final product with the introduction of specific, measured amounts of silicon rubber inside the shaft. This rubber coating, applied at the base of the handle provides a damping effect, reducing vibrations. It is inserted using a long needle and creates a specifically placed rubber layer.
- The Mercian Genesis CKF35 is the premium composite stick in the Genesis range, offering good levels of power because of the energy transfer, a low-bend profile and soft touch and feel.
- Suitable for intermediate junior players and beginner adults.
- Defenders will benefit from the carbon composition as the stiffness (compared to CF 15 and CF25) helps with distribution using hitting and slapping.
- The Pro Bend in 35 and 36.5 lengths helps lift passes and 3D skills which are great for intermediate midfield juniors.
- The open face and head weighting assist forwards by creating power for hit shots and also the ability to lift the ball if required, enabling shots to all corners.
