Mercian Evolution CKF75

CARBON FIBRE

One of the most common questions asked by the consumer is ‘how much carbon?’ with the perception that more is better. That is far from the truth, so to shed a little light. Firstly the quality of carbon (manufacturing point) is important. Toray (Japanese) Carbon is often considered the best, but Carbon from Germany, Scotland and South Africa (to name a few) are all high-quality. Sticks are usually made in Pakistan and most major brands will import Carbon into Pakistan to make sticks. Local made carbon is not usually as good. But it is difficult to know if a brand uses imported carbon. The number of filaments in the carbon fibre is relevant, 1K, 3K etc relate to the number of filaments of pure carbon within a fibre or ‘tow’. 1K is used in aeronautical industry and electronics. 3K and 6K are commonly used in sport as they have the right combination of weight and strength. Anything over 6K is very dense and too heavy for sports equipment. Again this isn’t a common line of questioning from the consumer but may come up. Carbon fibres are a straight line material and so provide stiffness in a single direction. To provide stiffness in multiple directions the fibre can be woven into a multi-directional sheet (seen as an obvious weave in the sticks surface) or single direction sheets can be layered over each other to create the multi-directional stiffness. 40% of the weight of a composite stick comes from the resin within it. So a stick can’t be 100% carbon. However it can be claimed that 100% of the composite materials in a stick are carbon. Mercian do not believe this gives optimal strength and so always combine the carbon overlay with a composite micro-skeleton made from fibreglass, Kevlar (aramid) and basalt. Carbon is stiff but brittle. The stiffness means that the energy created by the player when striking the ball – hit / slap – transfers to the ball and is not absorbed by the stick. Maximum energy transfer allowed by the FIH is 98%. But this stiffness means that the stick will not absorb energy on trapping / receiving so needs soft hands! The brittleness of carbon means that if the fibres are broken (stick tackle / post impact) they will crack and the stick can or will fail. This is not a manufacturing fault. Other materials can be used in conjunction with carbon to get a positive performance outcome. Special chemicals are used with paints and lacquers to get them to bend to the top layer of carbon and create high-quality graphics.

COLD SATIN LACQUER

The final coating applied to a stick is usually purely for cosmetic reasons. The Cold Satin Lacquer applied to the Evolution models actually feels different under a players touch, increasing awareness of temperature and giving the impression of reduced friction for dribbling and stick turn-over.

TCDK (tungsten carbide diffused Kevlar)

Kevlar is the registered trademark for a para-aramid synthetic fibre, also known simply as ARAMID in other sticks. This high-strength material was first commercially used in the early 1970s as a replacement for steel in racing tires. Typically it is spun into ropes or fabric sheets that can be used as such or as an ingredient in composite material components.Currently, Kevlar has many applications, including bulletproof vests, because of its high tensile strength-to-weight ratio; by this measure it is 5 times stronger than steel. Tungsten carbide (chemical formula WC) is a chemical compound (specifically, a carbide) containing equal parts of tungsten and carbon atoms. In its most basic form, tungsten carbide is a fine grey powder, Tungsten carbide is approximately twice as strong as steel, For TCDK the fine powder version of WC is diffused through a sheet of Kevlar in the manufacturing process further enhancing the natural characteristics of the material and increasing both its strength and more specifically its durability.

PEIZO-ELECTRIC FIBRES

Piezo-electric fibres are included in all the Evolution sticks they are used to ‘harvest’ the vibrations created in these super-stiff sticks and turn them into heat. The result of this is efficient vibration dampening. Its achieved because the molecules within the material are active, the force applied to them (vibrations) causes the fibres to bend and emit a small electric charge that is dispelled as heat. The technology originally used by Head in tennis, applied those forces through an electrode to counter-act the vibrations (this isn’t present in hockey sticks!)

NANO-POLYMER RESIN

The particles within our resins have been altered at a nano-size level (10 x below microscopic) Instead of using nano-carbon particles, the use of rubberized polymers creates a more flexible but stronger bond between the composite layers. This increases the stiffness of the sticks and reduces de-lamination.

ULTIMATE BEND

The Mercian Ultimate Bend is the most aggressive low bow that we have ever made, with the bend of the stick effectively cupping the ball. The maximum bend at this lowest legal point enhances drag flicking and aerial skills with the balance point of the stick adjusted to also favour 3D dribbling skills. Whilst the shaft weighting aid sticks head speed it still provides power and balance for the slapping and pushing associated with elite level skill execution.

MID BEND

The Mercian mid-bow has a 22mm bend situated 300mm up the shaft. A majority of players are still looking for a low or extreme low bow stick that helps with drag flicking, aerials or 3D skill execution. However, an increasing number are looking for a straighter stick, this Mid-bend aligns the hands more with the stick face and so it assists accuracy with hitting and slapping. With some people considering that the primary skills for defensive players are distribution using hitting and slapping, this stick is perfectly suited for that purpose.

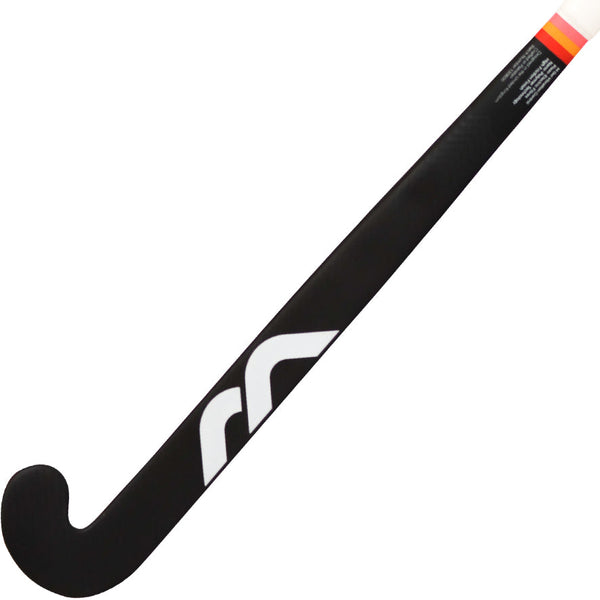

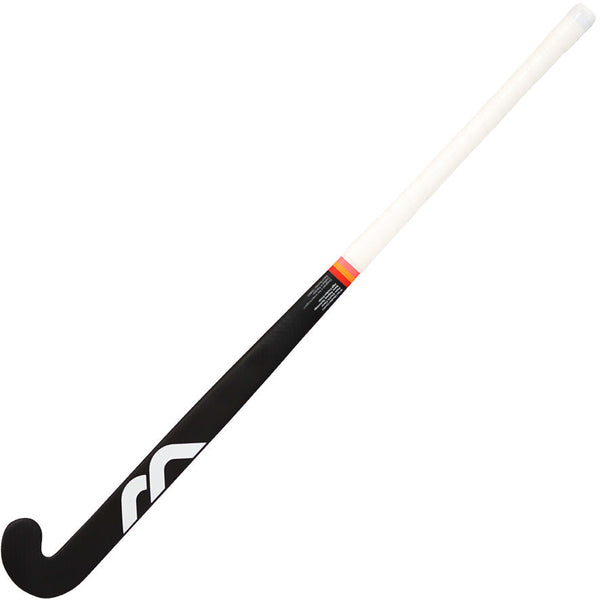

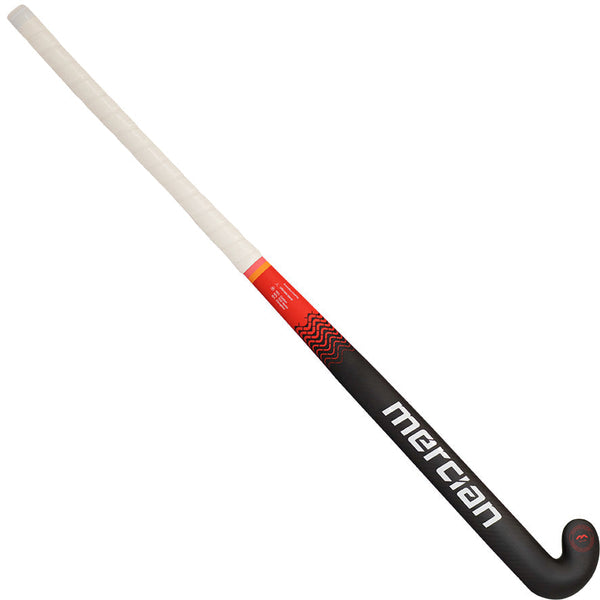

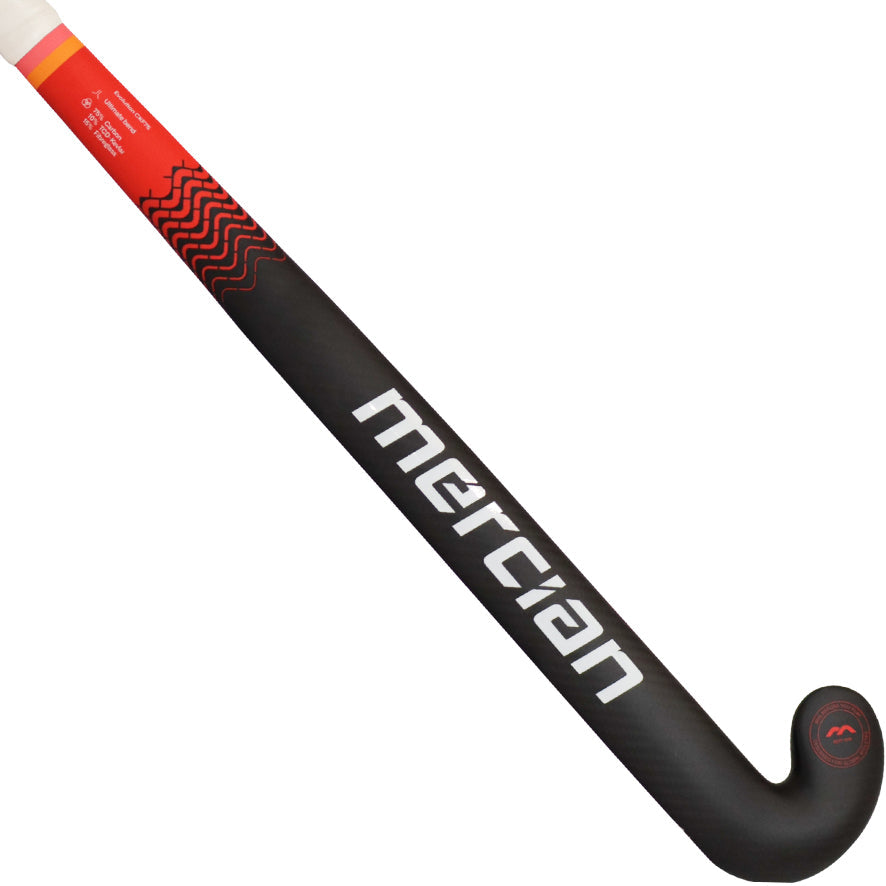

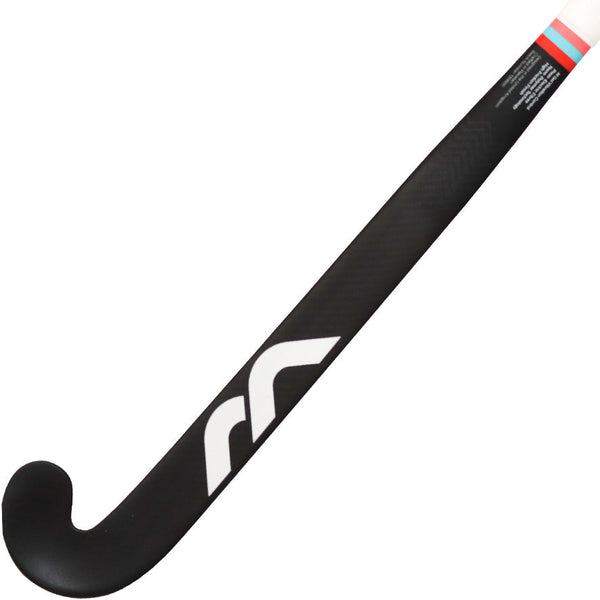

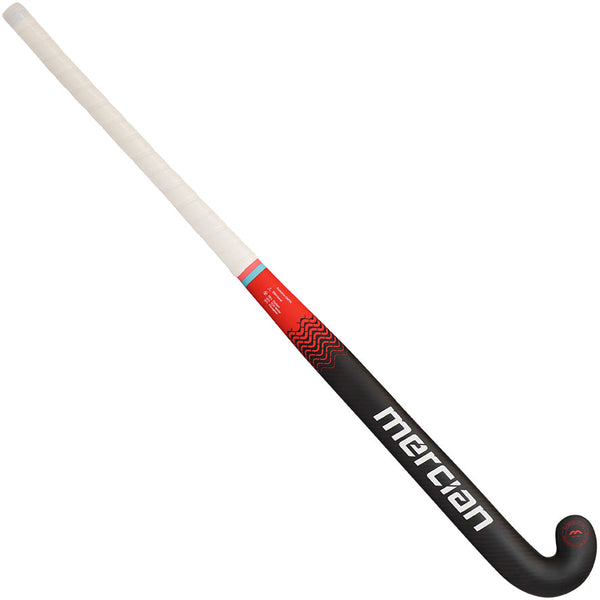

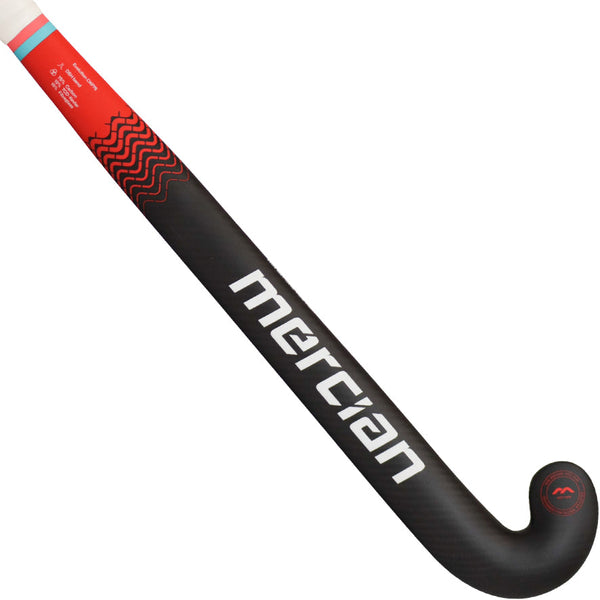

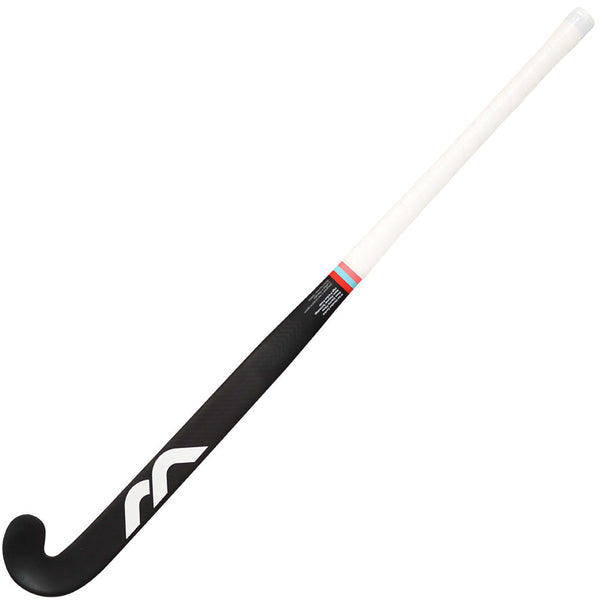

• The Evolution CKF75 is a high-quality, medium-carbon stick with the Ultimate (24.5mm @ 200mm) bend or DSH (23.5mm @250mm, 2mm concave face) bend It is suitable for almost any level of player, the carbon percentage offers good energy transfer and therefore power for hits and slaps.
• The open-face of the Ultimate model helps to lift the ball - drag flicks, 3D skills, aerials, with the additional bend helping stick turnover and therefore lateral ball movement.
• The mid-bow version technically assists the accuracy of hits and slaps as the face is in line with the hands at point of execution, the head weighting gives a sweet spot that also aids hits and slaps and the balance point helps with control.
• ULTIMATE BEND VERSION: Intermediate / Advanced defensive player who enjoys push passing, hitting and slapping as primary skills. (Jab and block tackling are skill, not stick, dependant). The lower balance point gives some head weight to aid ball control. The lower carbon gives a softer feel, also for enhanced control.
• ULTIMATE BEND VERSION: Intermediate / Advanced midfield player who enjoys running with the ball but is not focussed on lifting the ball off the ground. The head weighting aids hitting for shooting and passing as well as tight control. The lower carbon gives a softer feel, also for enhanced control.
• ULTIMATE BEND VERSION: Intermediate / Advanced forward who likes to focus on accurate control, powerful hit and slap shots and running with the ball with controlled movement. The lower carbon gives a softer feel, also for enhanced control.
• DSH BEND VERSION: Intermediate / Advanced defensive player who likes to have a stick with some head weighting to give power in tackles, slaps and hits, but with a low bow and concave face to aid overhead passes and short lifts.
• DSH BEND VERSION: Intermediate / Advanced midfield player who enjoys running with the ball, executing 3D skills for elimination but uses the head weighting for short powerful hit passes and pushes.
• DSH BEND VERSION: Intermediate / advanced attacking player who wants a concave face to aid ball control, an element of drag-flicking and the lower bend to assist lifted shots. The additional head weight also help with retaining the ball under pressure / resisting tackles.
